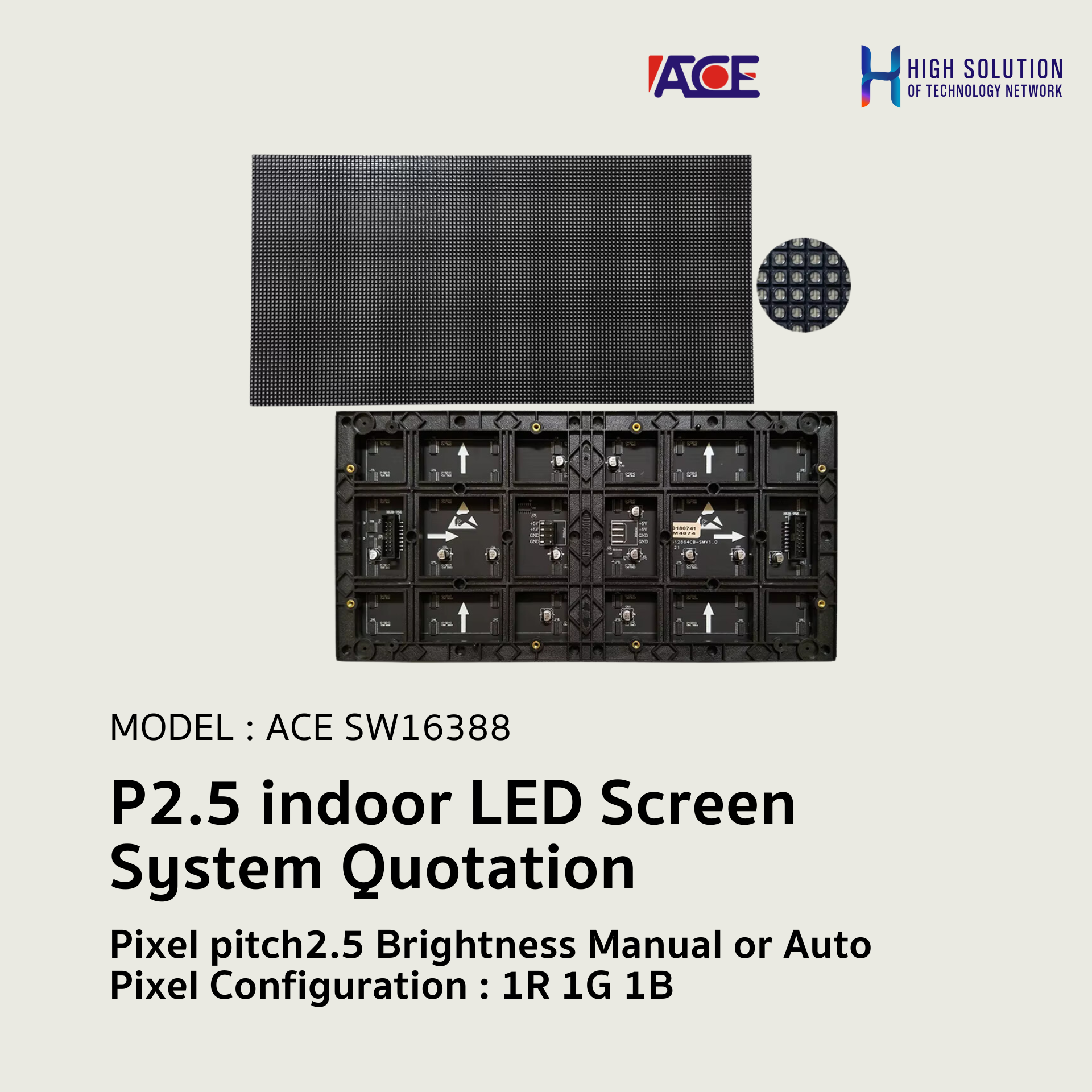

ACE SW16388 Indoor LED Screen System Quotation P2.5

Technicial Parameters

Module

Pixel Pitch : 2.5mm
Pixel Configuration : 1R 1G 1B
LED : SMD2121 ,Hongsheng
Wave length(nm) : R:618~623,G:521~524.B:464~467
Module Resolution : 128dots X 64dots
Module Pixles : 8192dots
Module Size : 320mm x160mm
IC brand : SW16388/FM6363

Screen

Aver. Power Consumption : 280W/m2
Max. Power Consumption : 450W/m2
Density(pixels/m2) : 160000dots/sqm
White Balance Brightness : 600 cd/m2,adjustable
Color Temperature : 5000K~9300K
Brightness Adjusted : Manual or Auto-adjustment
Best View distance(m) : 2~200m
Driving mode : Constant current, 1/32 duty
Gray Grade : 4,096 levels each color
Refresh Frequency : 3840Hz
Signal interface : DVI
Driving I.C : SW16388/DP3265
Input signal : Video:PAL,NTSC,,Option:VGA etc
Display Format : 800*600,1024*768,1280*1024
Screen weight : 30kg/m*
MTBF : >50,000 hours
Module Display Brightness Uniformity : <3%
Earth Leakage Current : <3mA
Protective Grade : IP43
Temperature-operating : -40'C~60'C
Humidity-operating : 10%~95%
Controlling system : Nova
Operating System : Windows98/me/2000/NT/XP
Maintainance way : Back-maintainance, Module displaced
Life span : 100,000 hours
