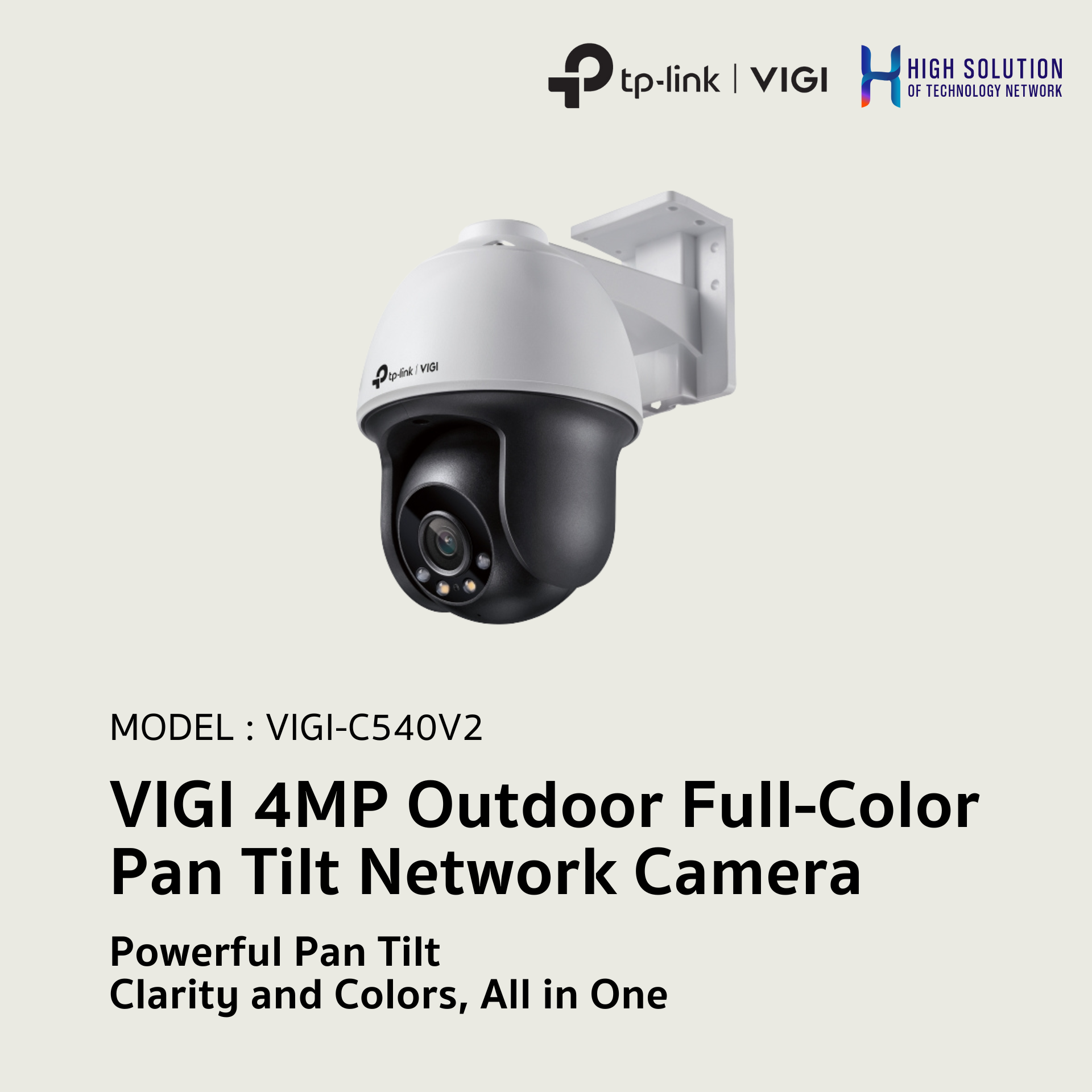

VIGI-C540V2 TP-LINK VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera IP Camera CCTV Camera

CAMERA

Image Sensor : 1/3” Progressive Scan CMOS
Shutter Speed : 1/3 to 1/10000 s
Slow Shutter : Yes
Aperture : 4 mm: F1.6
Lens : Fixed focal lens (4 mm)
Lens Mount : M12
Minimum Illumination : Color: 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism : IR Cut Filter
Day/Night Switch : Unified/ Scheduled/ Auto
Digital Noise Reduction : 3D DNR
WDR : DWDR
Weatherproof Rating : IP66
Viewing Angle :

LENS

Type : Fixed Focal Lens
Focal Length : 4 mm
Aperture : F1.6
FOV : 4mm Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens Mount : M12
DORI Distance : 4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

PTZ

Pan/tilt Range : Pan: 0° to 350°, Tilt: 0° to 120°
Pan/tilt Speed
Pan Speed:
Configurable from 1° to 55°/s; Preset Speed: 55°/s

Tilt Speed:
Configurable from 1° to 40°/s, Preset Speed 40°/s
Manual Control Speed : Configurable from 8° to 35°/s
Presets : 300
Patrol Scan : 8 patrols, up to 8 presets for each patrol
Power-off Memory : Yes
Park Action : Yes
3D Positioning : Preset, Patrol Scan

Angle Adjustment (Manual)

Range : Pan: 0° to 348°, Tilt: 0° to 120°

ILLUMINATOR

IR LED : Quantity: 2, Range: 30m, Wavelength: 850nm
White LED : Quantity: 2, Range: 30m
Illuminator On/Off Control : Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution : 2560 X 1440
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240
Bit Rate Control : CBR, VBR
Video Compression : Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type : Main Profile/High Profile
H.264+ : Main Stream Supported
H.265 Type : Main Profile
H.265+ : Main Stream Supported
Video Bit Rate : Main Stream 256 Kbps to 4 Mbps : Sub-Stream: 64 Kbps to 512 Kbps


Image Settings : Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement : BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range : DWDR
SNR : ≥ 52 dB
Image Parameters Switch : Yes
Privacy Mask : Up to 4 Masks
ROI  : 1 Region
OSD Setting : Yes

AUDIO

Audio Communication : Two-Way Audio
Audio Input : Yes
Audio Output : Yes
Audio Compression : Yes
Audio Sampling Rate : 8KHz
Environment Noise Filtering : Yes
Audio Bit Rate : 64 Kbps(G.711 alaw)

NETWORK

Protocol : TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF : Yes
API : Open Network Video Interface (Profile S)
Simultaneous Live View : Up to 6 Channels
Client : VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser : Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above
Cloud : Yes
Security : Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage : NAS (NFS, SMB/ CIFS)

ALARM AND EVENT MANAGEMENT

Smart Event : Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event : Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage : Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method : N/A
Output Notification : Message Push

INTERFACES

Network Interface : 1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Output : N/A
Alarm : N/A
Reset Button : Yes
Power : DC Power Port
Button : Reset Button
On-board Storage : Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone : Yes
Built-in Speaker : Yes
Audio : N/A

GENERAL

Operating Temperature : -30–60 °C
Storage Temperature : -40–60 °C
Operating Humidity : 95% or Less (Non-Condensing)
Storage Humidity : 95% or Less (Non-Condensing)
Package Contents : VIGI Network Camera
                                      Quick Start Guide
                                      Waterproof Cable Attachments
                                      Mounting Accessories (Screws, Drywall Anchors, Hex Key)
Dimensions( H X W X D ) : 120 × 172 × 198 mm
Material : Plastic
General Features : Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Consumption : 12V DC: Max 14,  PoE: Class 4
Power Supply :  12V DC ± 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 4)
Protection : IP66
Product Dimensions (L x W x H) : 120 × 172 × 198 mm
Certifications : CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

VIDEO/IMAGE

Video Compression : Main stream: H.265+/H.265/H.264+//H.264
Sub-Stream: H.265/H.264
H.264 Type : Main Profile/High Profile
H.264+ : Main Stream Supported
H.265 Type : Main Profile
H.265+ : Main Stream Supported
Frame Rate & Resolutions :
Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240

Max. Resolution : 2560 X 1440
Video Streaming : Main Stream, Sub-Stream
Image Settings : Mirror, Brightness, Contrast, Saturation, Sharpness,
Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement : BLC/3D DNR/HLC/SmartIR
Video Bit Rate : Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Day/Night Switch : Day/Night/Auto/Schedule-Switch
Privacy Mask : Up to 4 Masks

SMART FEATURE-SET

Smart Event : Human & Vehicle Classification, Area Intrusion
Detection, Line-Crossing Detection, People
Detection, Vehicle Detection, Region Entering
Detection, Region Exiting Detection, Object
Abandoned Detection, Object Removal Detection
Basic Event : Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method : N/A
Region of Interest : 1 Region
Alarm Linkage : Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Output Notification : Message Push
