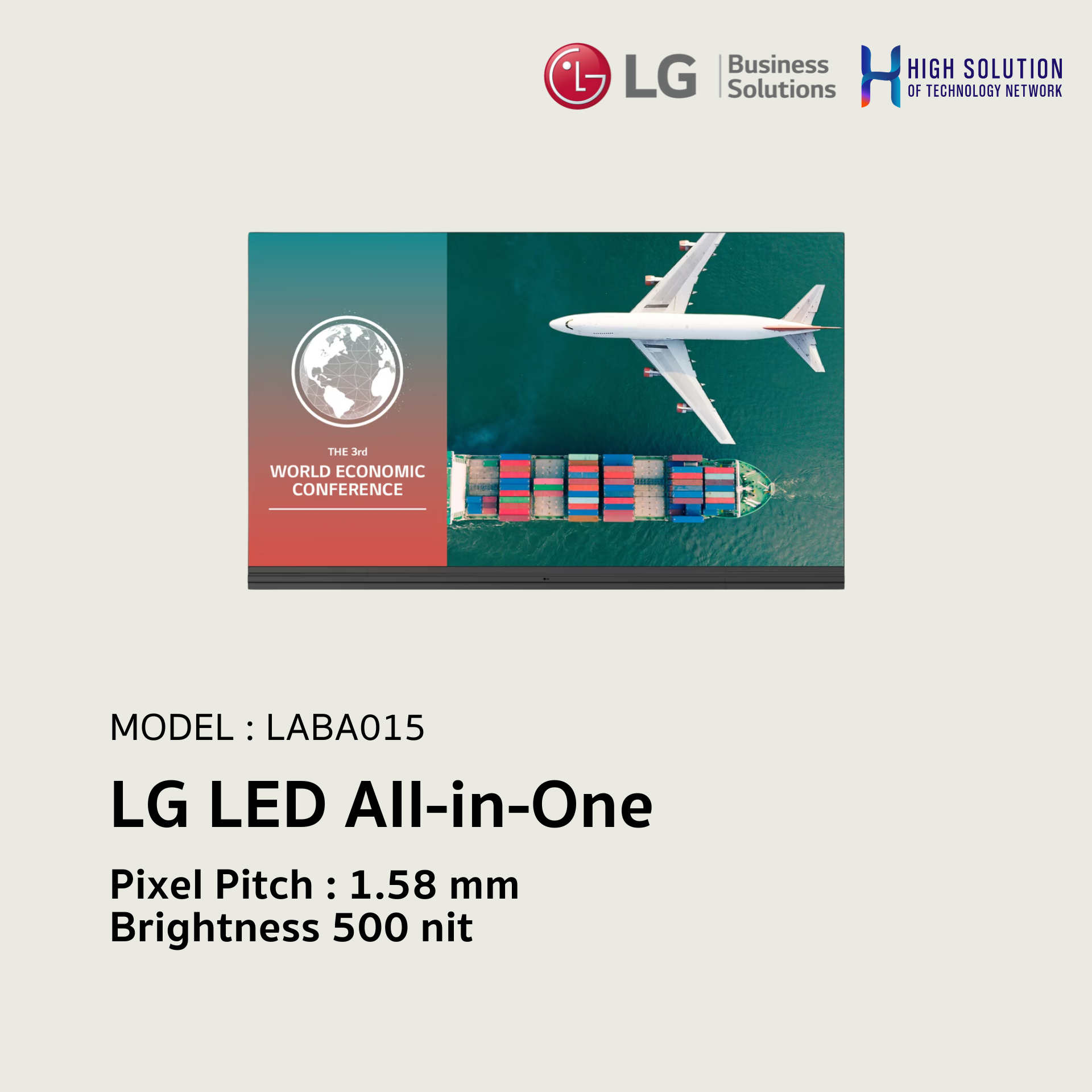

LABA015 LG LED All-in-One LED Display Supporting FHD Resolution

LABA015-GD

Notice  :  The below is the specification for FHD Resolution Configuration Case with LABA015-GD 5 × 5

Physical Parameters

Pixel Configuration  :  Single SMD
Pixel Pitch (mm)  :  1.575
Screen Resolution (WxH)  :  1,920 × 1,080
Module Dimensions (W × H, mm)  :  151.2 × 340.2
No. of Modules per Screen (WxH)  :  20 × 5 (Total 100)
Screen Dimensions (W x H x D, mm)  :  3,035 × 1,821.5 × 45.5 (Thickest 83.5)
Screen Surface Area (㎡)  :  5.14
Screen Weight (kg) :  154
Physical Pixel Density (pixels/m²)  :  403,124
Flatness of Cabinet (mm)  :  ≤0.15
Cabinet Material  :  Die-casting Aluminum
Service Access  :  Front

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)  :  500
Color Temperature (K)  :  3,200 - 9,300
Visual Viewing Angle (Horizontal)  :  160
Visual Viewing Angle (Vertical)  :  140
Brightness Uniformity  :  97%
Color Uniformity  :  ±0.003Cx,Cy
Contrast Ratio  :  8,000:1
Processing Depth (bit)  :  16 (HDR10, HDR10 Pro)

OPERATION SPECIFICATIONS

Lifetime (Hours to Half Brightness)  :  100,000
Operating Temperature (°C)  :  0 to +40
Operating Humidity  :  10-80% RH
IP Rating (Front / Rear)  :  IP50 / IP50

ELECTRICAL SPECIFICATIONS

Power Consumption (W/screen, Max.)  :  1,600
Power Consumption (W/screen, Avg.)  :  950
Power Consumption (W/m², Max.)  :  300
Power Consumption (BTU/h/Screen, Max.)  :  5,456
Power Consumption (BTU/h/Screen, Avg.)  :  3,240
Power Consumption (BTU/h/㎡, Max.)  :  1,023
Power Supply (V)  :  100 to 240
Frame Rate (Hz)  :  50 / 60
Refresh Rate (Hz)  :  3,840

Speaker

Speaker  :  Built-in (8 W + 8 W)

Certification

Certification  :  CE, FCC, cTUVus, CB, EMC Class A

Environment

Environment  :  RoHS, REACH

Controller

Controller  :  Embedded

Remote Control

I/O Port  :  HDMI (3), DP (1), USB, LAN, RS-232C In/Out, IR, Optical Digital Audio Out

Series

Series  :  LABA
