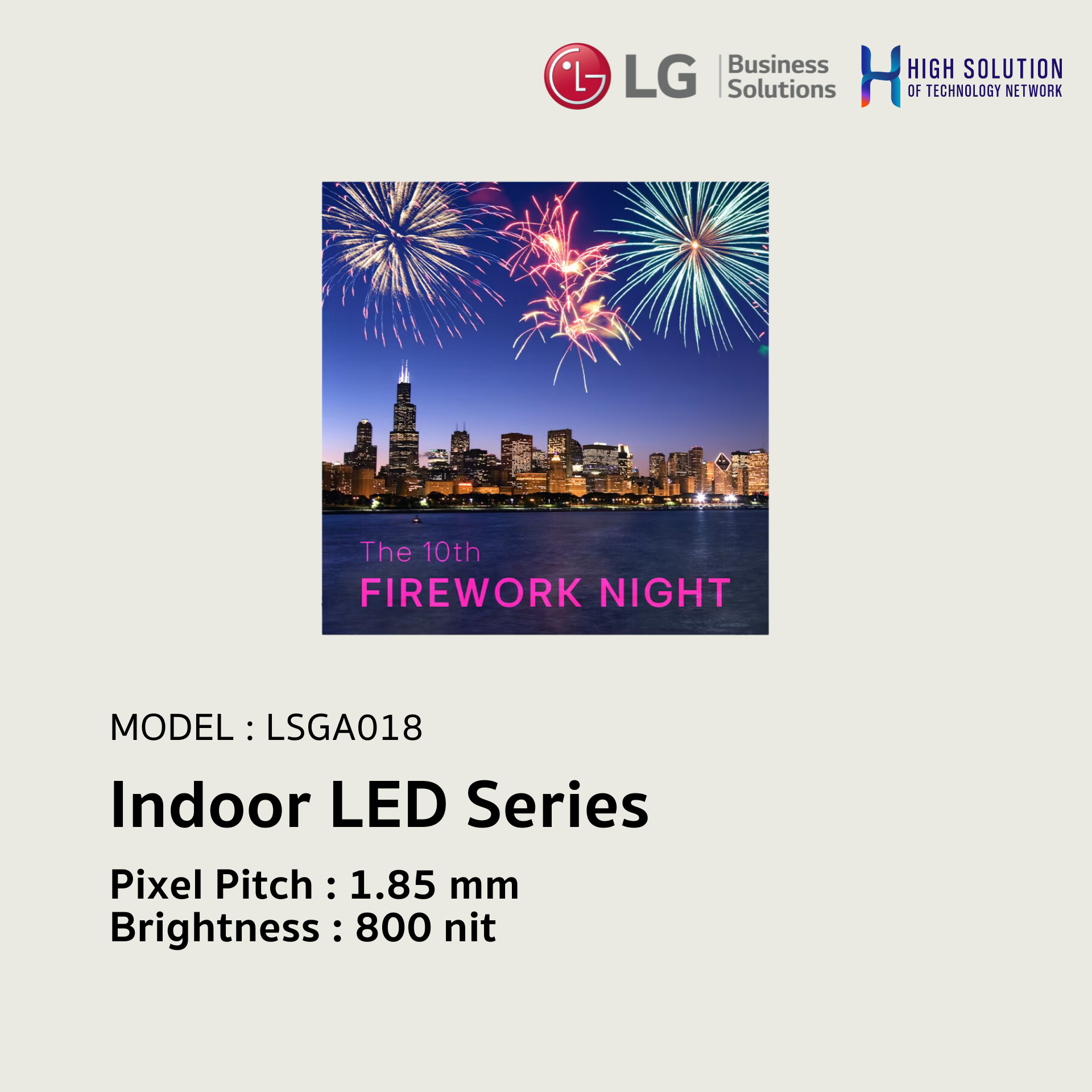

SKU : LSGA018-P1.85
หมวดหมู่ : LED Full Color Display Billboard Advertising ,  Indoor ,
แบรนด์ : LG
Share
Physical Parameters
Pixel Configuration : Single SMD
Pixel Pitch(mm) : 1.85
Module Resolution (WxH) : 135 x 135
Module Dimensions(WxH,mm) : 250 x 250
Weight per Module (kg) : 0.55
No. of Modules per Cabinet (WxH) : 2 x 4
Cabinet Resolution (WxH) : 270 x 540
Cabinet Dimensions (W x H x D, mm) : 500 x 1,000 x 90
Cabinet Surface Area (㎡) : 0.5
Weight per Cabinet (kg/unit) : 10
Weight per Square Meter (kg/m²) : 20
Physical Pixel Density (pixels/m²) : 291,600
Flatness of Cabinet (mm) : ±0.1
Cabinet Material : Magnalium
Service Access : Front & Rear
OPTICAL SPECIFICATIONS
Max Brightness (After Calibration, nit) : 800
Color Temperature (K) : 3,200~9,300
Visual Viewing Angle (Horizontal) : 160
Visual Viewing Angle (Vertical) : 140
Brightness Uniformity : 0.98
Color Uniformity : ±0.003Cx,Cy
Contrast Ratio : 6,500:1
Processing Depth (bit) : 14
ELECTRICAL SPECIFICATIONS
Power Consumption (W/Cabinet, Max.) : 195
Power Consumption (W/Cabinet, Avg.) : 65
Power Consumption (W/m², Max.) : 390
Heat Dissipation (BTU/h/Cabinet, Max.) : 532
Heat Dissipation (BTU/h/Cabinet, Avg.) : 177
Heat Dissipation (BTU/h/m², Max.) : 1065
Power Supply (V) : 100 to 240
Frame Rate (Hz) : 50 / 60
Refresh Rate (Hz) : 3,840
OPERATION SPECIFICATIONS
LED Lifetime (Half brightness) : 100,000
Operating Temperature() : -10 to +40
Operating Humidity : 10~80%RH
IP Rating Front : IP40
IP Rating Rear : IP20
Standard
Certification : CE_LVD/EMC, FCC, CB
Environment
Environment : RoHS, REACH
Controller
Controller : CVGA
