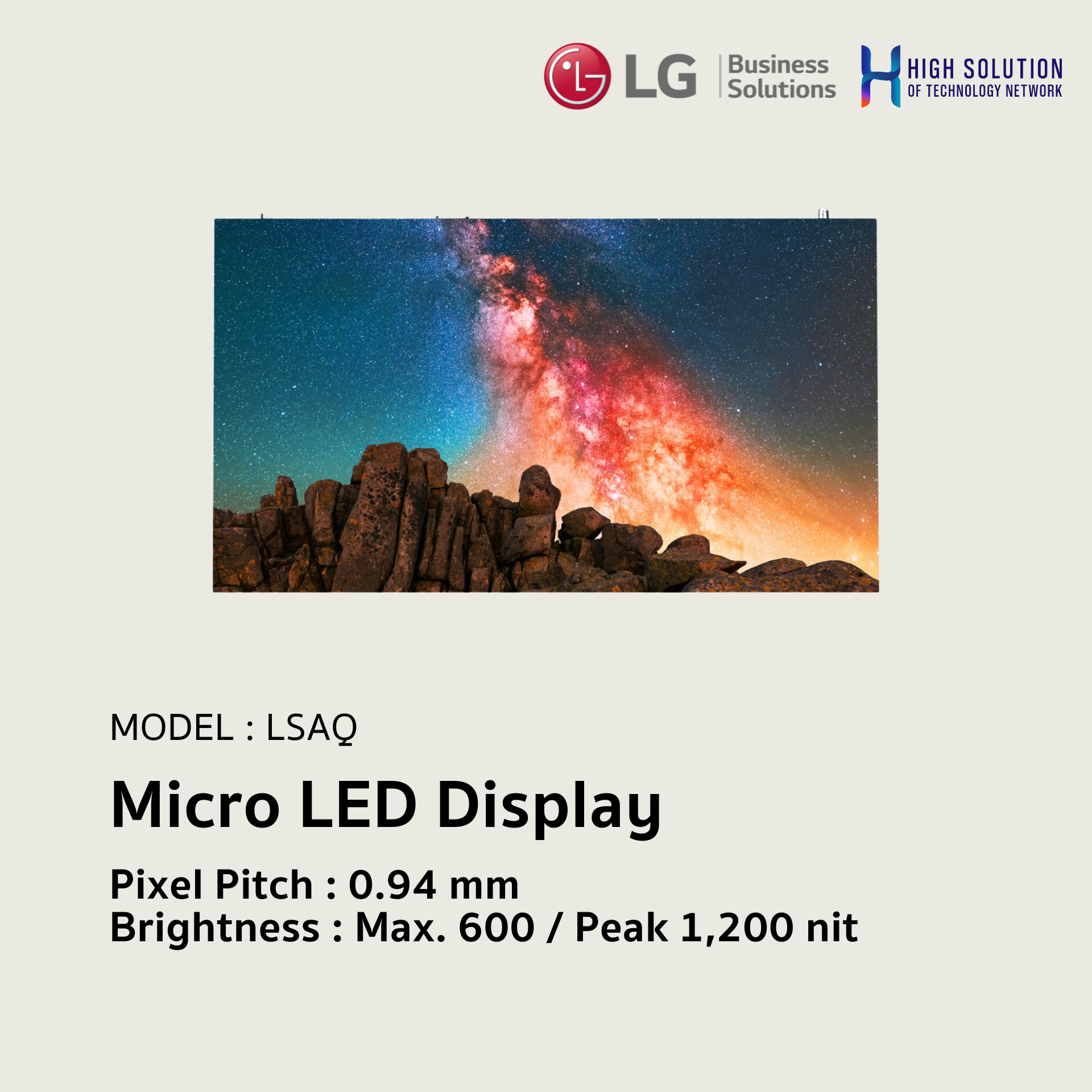

LSAQ LG MAGNIT : Micro LED Display Micro LED Display with Detachable PSU

Physical Parameters

Pixel Configuration  :  Micro
Pixel Pitch (mm)  :  0.9375
Module Resolution (W x H)  :  320 × 120
Module Dimensions (W x H, mm)  :  300 × 112.5
Weight per Module (kg)  :  0.19
No. of Modules per Cabinet (W × H)  :  2 × 3
Cabinet Resolution (W × H)  :  640 × 360
Cabinet Dimensions (W x H x D, mm)  :  600x337.5x44.9
Cabinet Surface Area (m²)  :  0.203
Weight per Cabinet (kg/unit)  :  6.4
Weight per Square Meter (kg/m²)  :  31.6
Physical Pixel Density (pixels/m²)  :  1,137,778
Flatness of Cabinet (mm)  :  ±0.5
Cabinet Material  :  Extrusion Aluminum
Service Access  :  Front and Rear

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)  :  600 / Peak 1,200
Color Temperature (K)  :  3,200~9,300 / Default 7,300
Visual Viewing Angle (Horizontal)  :  160
Visual Viewing Angle (Vertical)  :  160
Brightness Uniformity  :  95%
Color Uniformity  :  ±0.02Cx,Cy
Contrast Ratio  :  100,000:1 @10lux
Processing Depth (bit)  :  20 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)  :  67
Power Consumption (W/Cabinet, Avg.)  :  40
Power Consumption (W/m², Max.)  :  331
Heat Dissipation (BTU/h/Cabinet, Max.)  :  229
Heat Dissipation (BTU/h/Cabinet, Avg.)  :  137
Heat Dissipation (BTU/h/m², Max.)  :  1,132
Power Supply (V)  :  48 Vdc
Frame Rate (Hz)  :  50 / 60
Refresh Rate (Hz)  :  3,840

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)  :  100,000
Operating Temperature()  :  0 to +40
Operating Humidity  :  10 ~ 80%RH
IP Rating Front  :  IP50
IP Rating Rear  :  IP20

Standard

Certification  :  Safety 60950-1, EMC Class B, BS476 Part7 Class2Y

Environment

Environment  :  RoHS

Controller

Controller  :  CSAB-00915D

Series

Series  :  LSAQ
