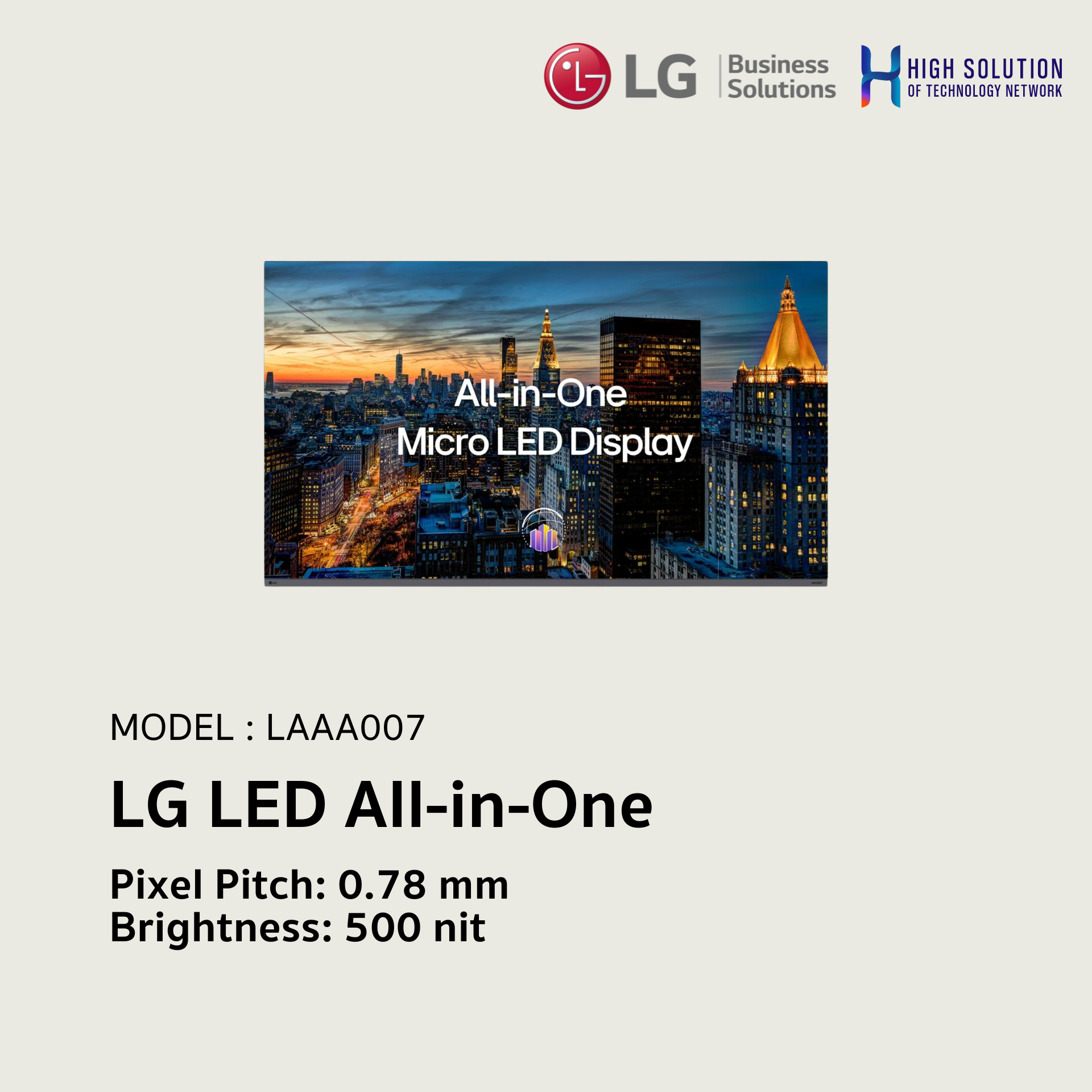

LAAA007 LG Magnit LED All-in-One 136” (Ultra HD) P0.78

Physical Parameters

Pixel Configuration  :  Micro
Pixel Pitch (mm)  :  0.78
Screen Resolution (W × H)  :  3,840 × 2,160
Module Dimensions (W x H, mm)  :  300 × 112.5
No. of Modules per Screen (W × H)  :  10 × 15 (Total 150)
Screen Resolution (WxH)  :  3,840x2,160
Screen Dimensions (W x H x D, mm, including bezel)  :  3,005x1,742x54.9 (Thickest 57.4)
Screen Surface Area (m²)  :  5.06
Weight of the screen  :  190
Physical Pixel Density (pixels/m²)  :  1,638,400
Flatness of Cabinet (mm)  :  ±0.2
Cabinet Material  :  Steel
Service Access  :  Front

OPTICAL SPECIFICATIONS

Max. Brightness (After Calibration)  :  500 / Peak 1,000
Color Temperature  :  3,200~9,300
Visual Viewing Angle (Horizontal)  :  160
Visual Viewing Angle (Vertical)  :  160
Brightness Uniformity  :  95%
Color Uniformity  :  ±0.015 Cx, Cy
Contrast Ratio  :  25,000 : 1 @ 10lux
Processing Depth (bit)  :  20 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/screen, Max.)  :  1,450
Power Consumption (W/screen, Avg.)  :  850
Power Consumption (W/m², Max.)  :  277
Heat Dissipation (BTU/h/Screen, Max.)  :  4,950
Heat Dissipation (BTU/h/Screen, Avg.)  :  2,900
Heat Dissipation (BTU/h/m², Max.)  :  950
Power Supply (V)  :  100 to 240
Frame Rate (Hz)  :  50 / 60
Refresh Rate (Hz)  :  3,840

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)  :  100,000
Operating Temperature()  :  0 to +40
Operating Humidity  :  10-80% RH
IP Rating Front  :  IP50
IP Rating Rear  :  IP20

Standard

Certification  :  Safety 60950-1, EMC Class A
Certification (Fire Protection)  :  BS476 Part7 Class1

Speaker

Speaker   :  Built-in (10 W + 10 W)I/O Port

I/O Port

HDMI(3), DP(1), USB, LAN,
RS232C In/Out, IR,
Optical Digital Audio Out
