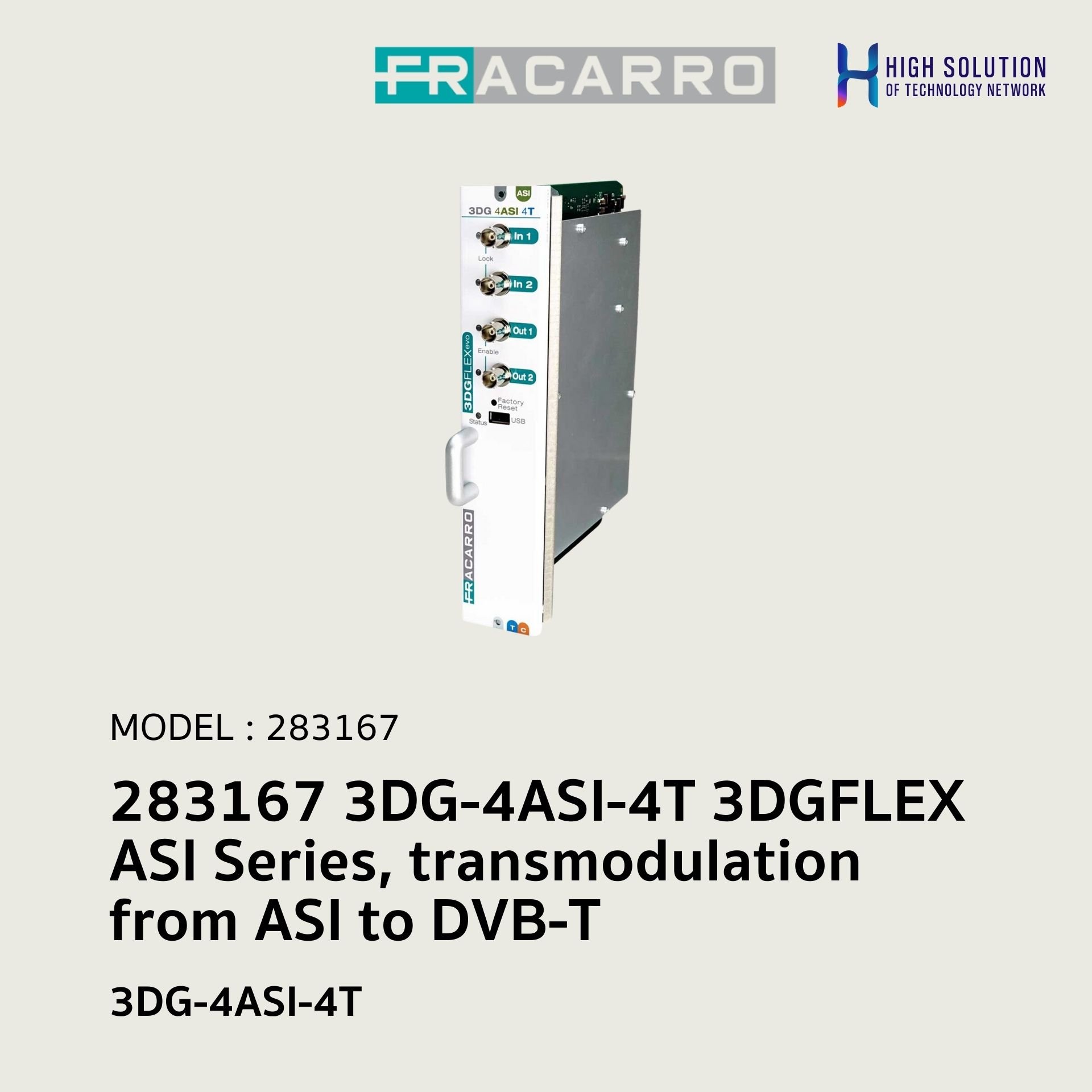

283167 3DG-4ASI-4T 3DGFLEX ASI Series, transmodulation from ASI to DVB-T

Name: 283167 3DG-4ASI-4T 3DGFLEX ASI Series, transmodulation from ASI to DVB-T
Brand: Fracarro
SKU: 283167
Availability: InStock

คุณสมบัติสินค้า:

SKU : 283167

เพิ่มรายการโปรด

เปรียบเทียบ

หมวดหมู่ : Fracarro , Headend Analog & Digital ,

แบรนด์ : Fracarro

The ASI module belongs to the 3DGFLEX products family, and is able to simultaneously manage the programs available on different distinct ASI sources.

The module is able to manage ASI flows, coming from digital encoders or from external ASI sources typically available in the control rooms of broadcasters and to flexibly choose the programs that will make up the independent output multiplexes of which the module is equipped allowing the installer to decide which and how many contents to distribute through the coaxial system

Main Specifications

Ideal in combination with encoders for external sources SIG7404H or SIG7804H264.
“MUX ad Hoc”: possibility to create your own mux at will by choosing the programs from all the new EVO modules inserted in the same BOX and to manage all the descriptive parameters of the individual programs (LCN, SID, PID, Program name...) and MUX (ONID, TSID, NetID, ...).
Multifunction USB port for uploading/downloading existing configurations, for updating the module firmware:in the new EVO modules it is possible to play video clips saved on an

283167 3DG-4ASI-4T 3DGFLEX ASI Series transmodulation from ASI to DVB-T 283167 3DG-4ASI-4T 3DGFLEX ASI Series

283167 3DG-4ASI-4T 3DGFLEX ASI Series, transmodulation from ASI to DVB-T
