PC-668RC (TOA) Ceiling Mount Speaker / Sound System for Ballroom & Seminar Hall / Meeting room & Conference Room

Attribute:

SKU : PC-668RC

Brand : TOA

Share

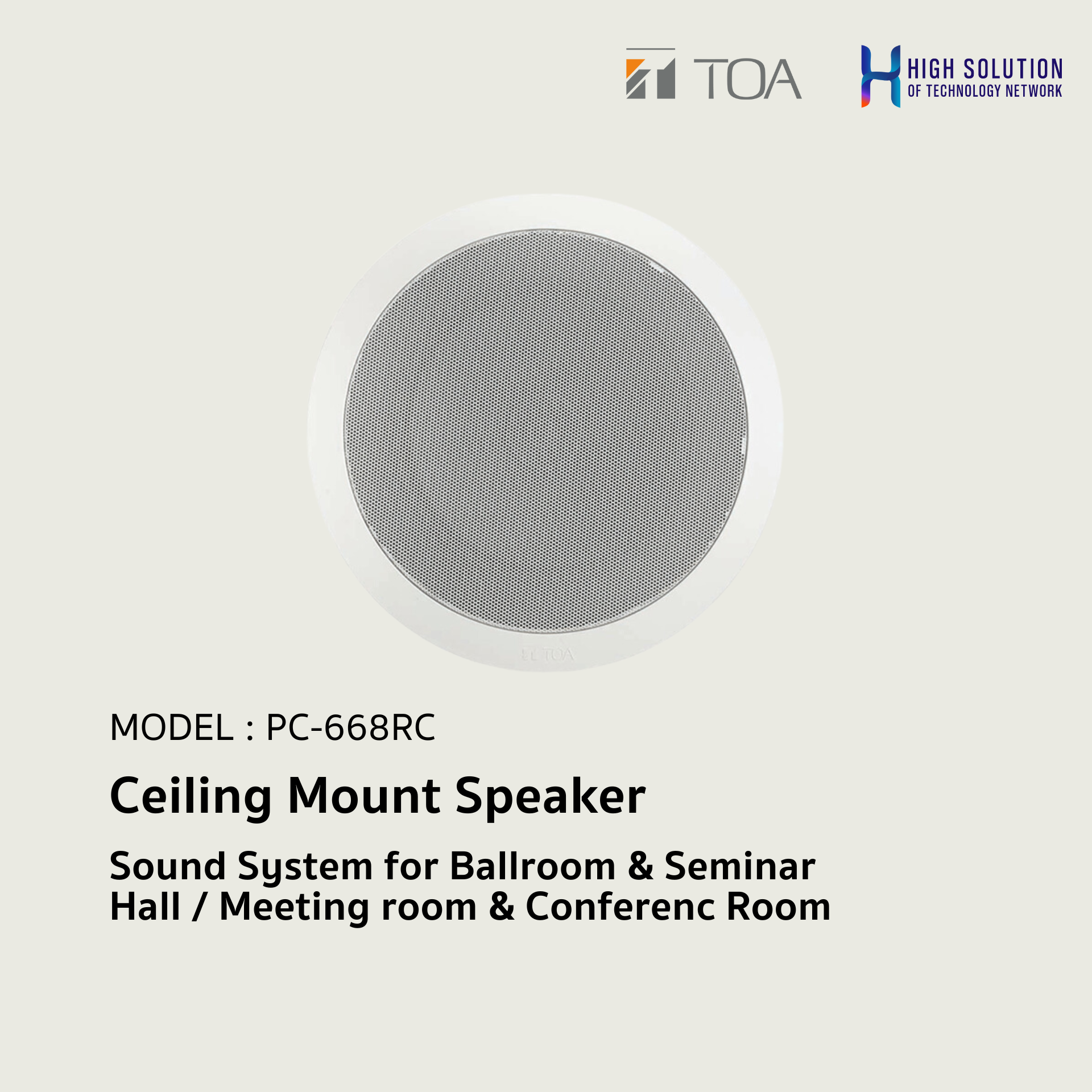

The PC-688RC is a Ceiling Mount Speaker with integrated resin panel and speaker frame. It feature spring clamp mechanism for easy speaker mounting to ceiling. The slim speaker frame design allows it to blend into the interior design of the application easily. Input impedance can be easily adjusted by changing the tap of the transformer. PC-668RC, comes with input terminal block which makes cable connection easy when bridging wires.





NameCeiling Mount Speaker
ModelPC-668RC
Rated Input15 W (100 V, 70 V line)
Impedance Option100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3kΩ (3 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)
Sensitivity96 dB (Pink Noise 500 Hz - 5,000 Hz / 1W, 1m)
Frequency Response65 Hz - 20,000 Hz (at 20 dB below peak SPL)
Speaker Component20 cm (8") double cone-type
Dimensions for Fixing HoleMounting hole: Φ250±5 mm (Φ9.84"±0.2")
Ceiling thickness: 5 - 25 mm (0.20" - 1.98")
Speaker Mounting MethodSpring clamp
Input ConnectorPush-In Connector (Bridging and branch connection possible)
FinishPanel: Polypropylene resin, traffic white (RAL 9016 equivalent)
Grille: Surface-treated steel plate net, traffic white (RAL 9016 equivalent), paint
DimensionsΦ280 × 90 (D) mm (11.02" × 3.54")
Weight0.97 kg (2.14 lb)
AccessoryPaper pattern …1
