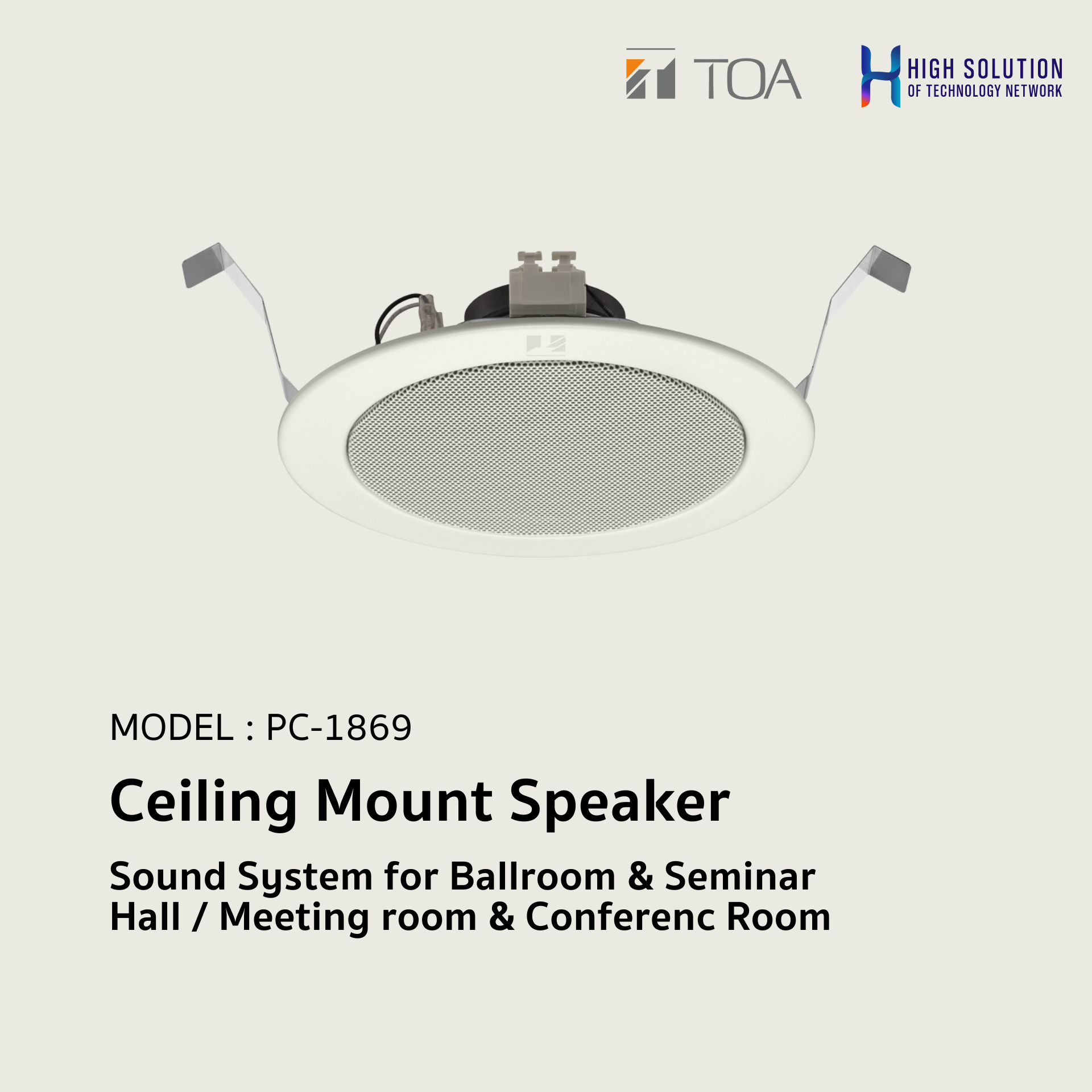

PC-1869 (TOA) Ceiling Mount Speaker / Sound System for Ballroom & Seminar Hall / Meeting room & Conference Room
Attribute:
SKU : PC-1869
Categories : Sound PA , PA Ceiling Speakers ,
Brand : TOA
Share
Integrated with a speaker unit and panel, the PC-1869 Ceiling Mount Speaker is of all metallic construction and ideal for use in a voice alarm system. It feature spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer. The push-in type input terminal block makes cable connections easy and allows bridge wiring.
| Name | Ceiling Mount Speaker |
| Model | PC-1869 |
| Rated Input | 6 W (100 V line), 3 W (70 V line) |
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) |
| Sensitivity | 90 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) |
| Frequency Response | 55 Hz - 18 kHz (peak -20 dB) |
| Speaker Component | 12 cm (5") cone-type |
| Dimensions for Fixing Hole | Mounting hole: φ150±3 mm (φ5.91"±0.12") Ceiling thickness: 5 - 25 mm (0.2" - 0.98") |
| Speaker Mounting Method | Spring clamp |
| Applicable Cable | 600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14) 7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16) |
| Connection | Push-in connector (bridging terminal-2 branch type) |
| Finish | Baffle: Steel plate, white (RAL 9016 equivalent), paint Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint |
| Dimensions | φ180 × 72 (D) mm (φ7.09" × 2.83") |
| Weight | 620 g (1.37 lb) |
| Accessory | Paper pattern …1 |
