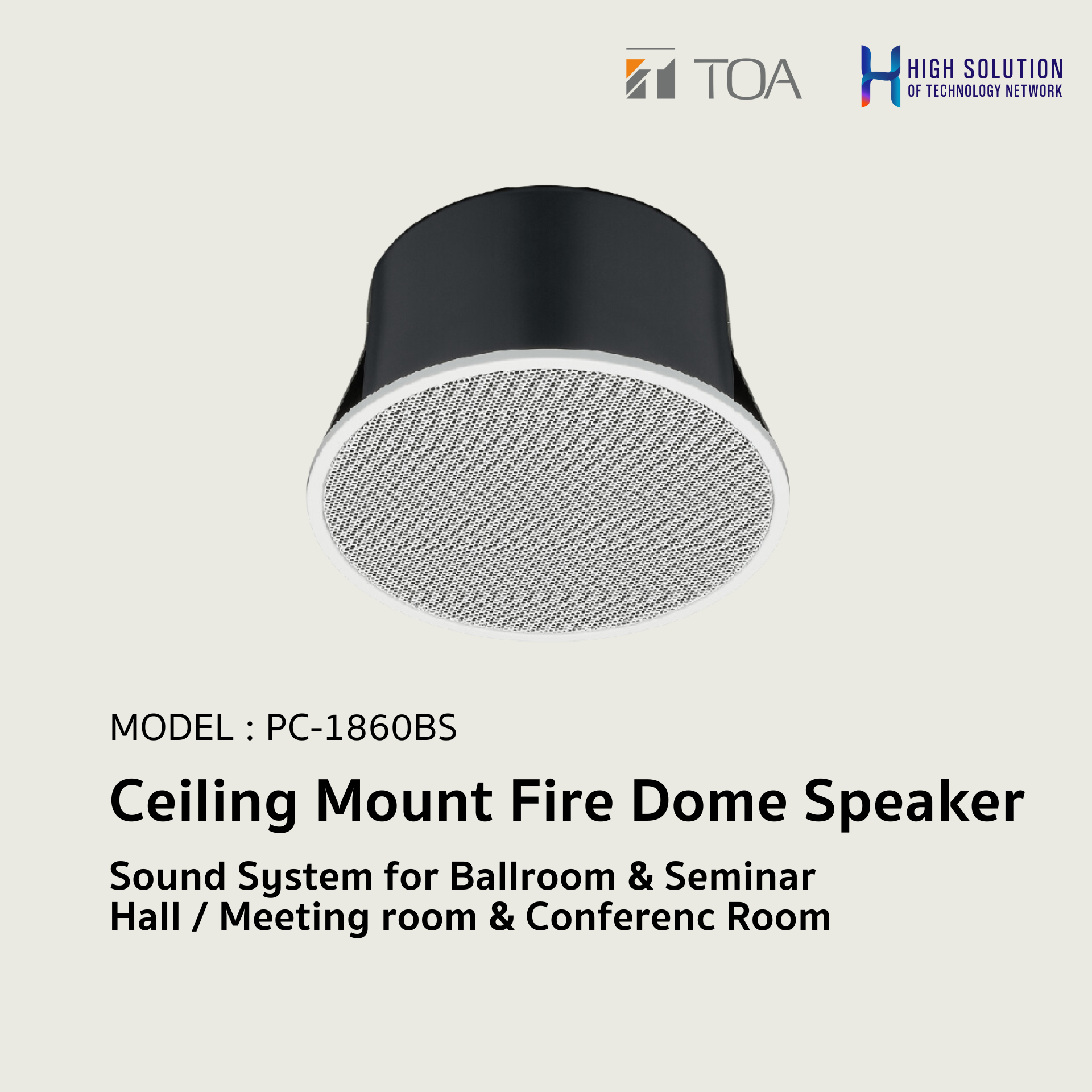

PC-1860BS (TOA) Ceiling Mount Fire Dome Speaker / Sound System for Ballroom & Seminar Hall / Meeting room & Conference Room

Attribute:

SKU : PC-1860BS

Brand : TOA

Share



PC-1860BS is product with EN54-24 and BS 5839-8:2008 certification suitable for announcement and music. This speaker is equipped with Fire Dome to protect and prevents fire from spreading in the ceiling in case of an emergency situation. Speaker's thin panel design harmonizes with the venue's architecture and decor, blending it neatly into the environment.



NameCeiling Mount Fire Dome Speaker
ModelPC-1860BS
Rated Input6 W (100 V line), 3 W (70 V line)
Rated Impedance100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity95 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
93 dB (1 W, 1 m) (100 Hz - 10 kHz, pink noise)
81 dB (1 W, 4 m) (100 Hz - 10 kHz, pink noise)
Max. Sound Pressure Level100 dB (6 W, 1 m) (100 Hz - 10 kHz, pink noise)
88 dB (6 W, 4 m) (100 Hz - 10 kHz, pink noise)
Frequency Response170 Hz - 20 kHz (peak -20 dB)
Coverage Angle (-6 dB)Horizontal and Vertical: 165° (500 Hz), 175° (1 kHz), 165° (2 kHz), 70° (4 kHz) according to EN54-24
Environmental TypeA (indoor applications)
Speaker Component12 cm (5") cone-type
Operating Temperature-10 °C to + 50 °C (14 °F to 122 °F)
Dimensions for Fixing HoleMounting hole: φ156±3 mm (φ6.14"±0.12")
Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
Speaker Mounting MethodSpring catch
Applicable CableSolid wire: 0.8 - 6 mm² (AWG 18 - 10)
Connection2-Steatite connector (3 pole)
FinishFrame: Steel plate, white (RAL 9016 equivalent), paint
Grille: Steel net, white (RAL 9016 equivalent), paint
Fire Dome: Steel plate, black, paint
Dimensionsφ180 × 5 (exposed section) + 100 (D) mm (φ7.09" × 0.2" + 3.94")
Weight1.1 kg (2.43 lb)
AccessoryPaper pattern …1, Rubber grommet ...2
