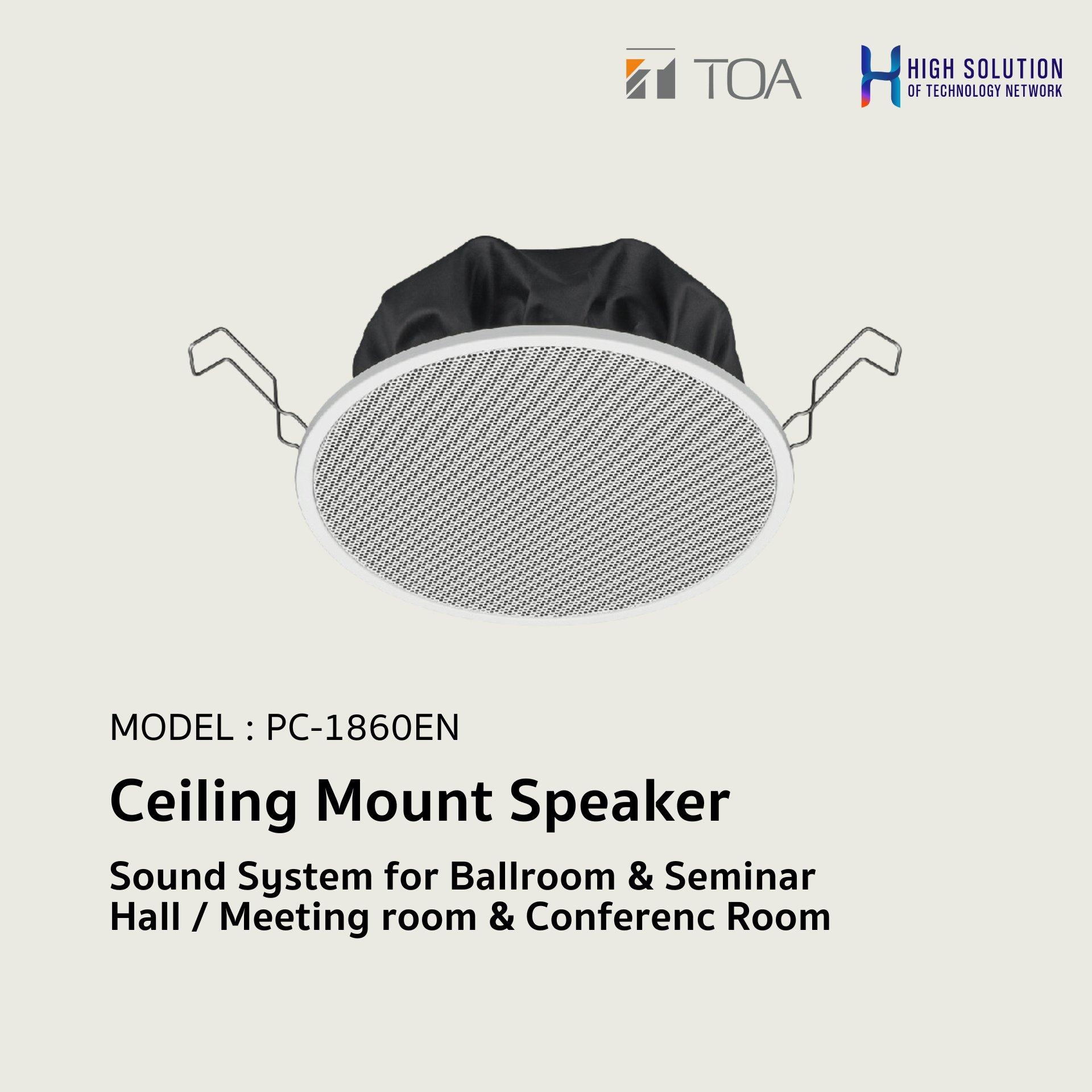

PC-1860EN (TOA) Ceiling Mount Speaker / Sound System for Ballroom & Seminar Hall / Meeting room & Conference Room

Attribute:

SKU : PC-1860EN

Brand : TOA

Share



All metallic construction, ideal for use in a voice alarm system or BGM system. It feature spring clamp mechanism for easy mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer. The push-in type input terminal block makes cable connection easy and allow bridge wiring.





NameCeiling Mount Speaker
ModelPC-1860EN
Rated Input6 W (100 V line), 3 W (70 V line)
Rated Impedance100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
92 dB (1 W, 1 m) (100 Hz - 10 kHz, pink noise)
80 dB (1 W, 4 m) (100 Hz - 10 kHz, pink noise)
Max. Sound Pressure Level99 dB (6 W, 1 m) (100 Hz - 10 kHz, pink noise)
87 dB (6 W, 4 m) (100 Hz - 10 kHz, pink noise)
Frequency Response80 Hz - 20 kHz (peak -20 dB)
Coverage Angle (-6 dB)Horizontal and Vertical: 165° (500 Hz), 175° (1 kHz), 165° (2 kHz), 70° (4 kHz) according to EN54-24
Environmental TypeA (indoor applications)
Speaker Component12 cm (5") cone-type
Operating Temperature-10 °C to + 50 °C (14 °F to 122 °F)
Dimensions for Fixing HoleMounting hole: φ150±3 mm (φ5.91"±0.12")
Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
Speaker Mounting MethodSpring clamp
Applicable CableSolid wire: 0.5 - 3 mm² (AWG 20 - 12)
ConnectionPush wire connection (bridging terminal-2 branch type)
FinishFrame: Steel plate, white (RAL 9016 equivalent), paint
Grille: Steel net, white (RAL 9016 equivalent), paint
Dimensionsφ180 × 70 (D) mm (φ7.09" × 2.76")
Weight560 g (1.23 lb)
AccessoryPaper pattern …1, Zip Tie ... 2
