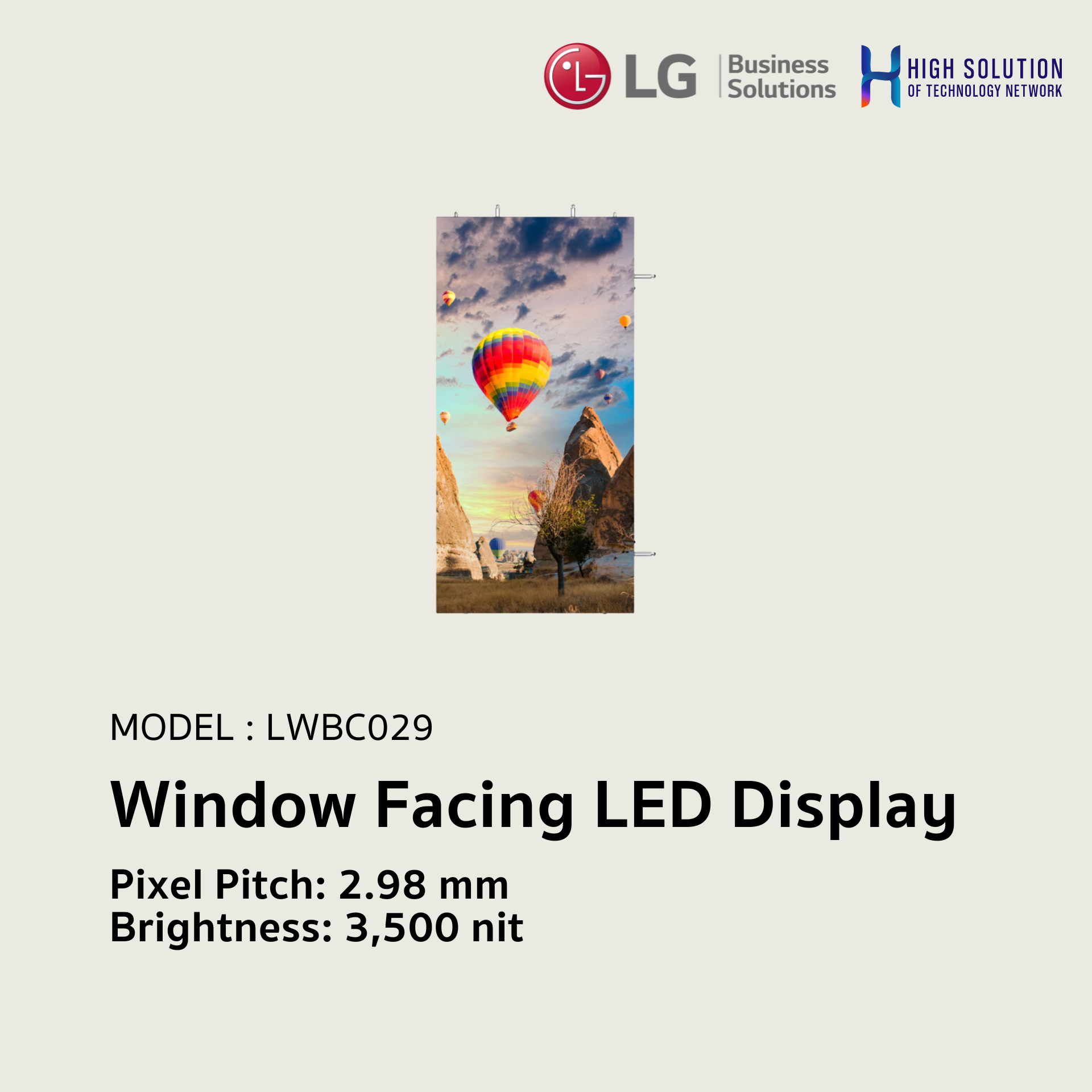

LWBC029 LG Window Facing LED Display Quick Lock & Flip Design P2.98

Physical Parameters

Pixel Configuration :  3 in 1  SMD
Pixel Pitch(mm)  :  2.604
Module Resolution (WxH)  :  96 × 96
Module Dimensions(WxH,mm)  :  250 × 250
Weight per Module (kg)  :  0.70
No. of Modules per Cabinet (WxH)  :  2 x 4
Cabinet Resolution (WxH)  :  192 × 384
Cabinet Dimensions (W x H x D, mm)  :  500 × 1,000 × 68
Cabinet Surface Area (㎡)  :  0.500
Weight per Cabinet (kg/unit)  :  12.0
Weight per Square Meter (kg/m²)  :  24.0
Physical Pixel Density (pixels/m²)  :  147,456
Flatness of Cabinet (mm)  :  0.5
Cabinet Material  :  Die Casting Aluminum
Service Access  :  Front or Rear

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)  :  3,500
Color Temperature (K)  :  3,200-9,300
Visual Viewing Angle (Horizontal) x (Vertical) :  160 × 140
Brightness Uniformity  :  ≥97%
Color Uniformity  :  ±0.003Cx,Cy
Contrast Ratio  :  5,000
Processing Depth (bit)  :  16 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)  :  300
Power Consumption (W/Cabinet , Avg.)  :  100
Power Consumption (W/m², Max.)  :  600
Heat Dissipation (BTU/h/Cabinet, Max.)  :  1,024
Heat Dissipation (BTU/h/Cabinet, Avg.)  :  341
Heat Dissipation (BTU/h/m², Max.)  :  2,047
Power Supply (V)  :  100 to 240
Frame Rate (Hz)  :  50 / 60
Refresh Rate (Hz)  :  3,840

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)  :  100,000
Operating Temperature()  :  -20 to +40
Operating Humidity  :  10-99%RH
IP Rating Front / RearIP5X / IP5X

Series

Series  :  LWBC
