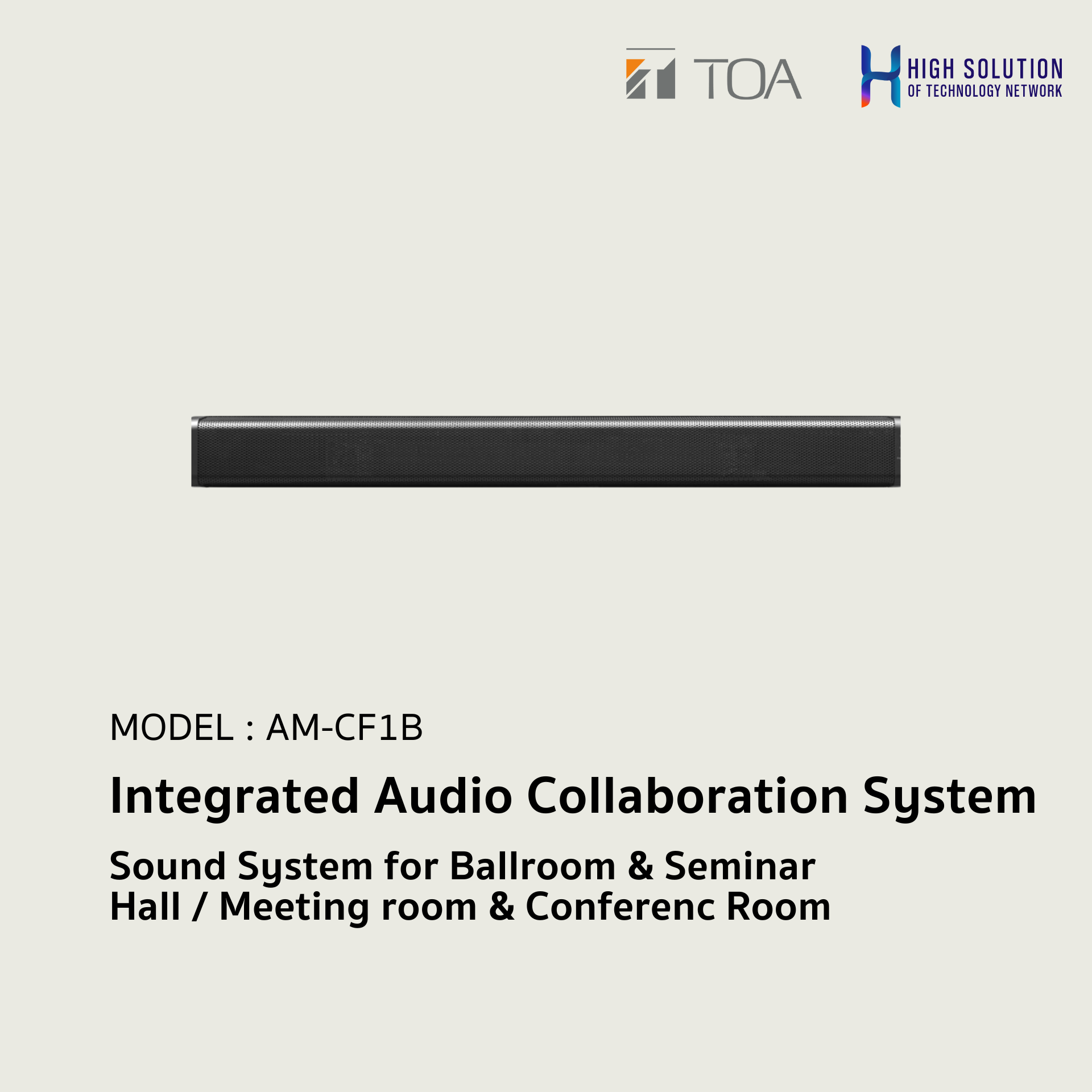

AM-CF1B (TOA) Integrated Audio Collaboration System / Sound System for Ballroom & Seminar Hall / Meeting room & Conference Room

Attribute:

SKU : AM-CF1B

Categories : Sound PA Audio Speakers

Brand : TOA

Share



The AM-CF1 is a conference room audio system that combines TOA's proprietary microphone array technology with a 2-Way active DSP system.
High-quality speakers Microphone array technology These two things work great together. The microphone can track the speaker's voice in real time. This will make your presentation look more interesting.





NameIntegrated Audio Collaboration System
ModelAM-CF1B
Power Source12 V DC (supplied from the specified AC adapter) or 52 V DC (supplied from the specified PoE extender)
Current ConsumptionUnder 3.5 A
InputsUSB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1 micro-B port
Bluetooth: 2 channels,
Codec: 1 channel, RCA pin jack, -10 dB*1, 10 kΩ, unbalanced type
AUX: 2 channels, RCA pin jack, -10 dB*1, 10 kΩ, unbalanced type
OutputsUSB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1 micro-B port
Bluetooth: 2 channels,
Codec: 1 channel, RCA pin jack, -10 dB*1, 600 Ω, unbalanced type
AUX: 2 channels, removable terminal block (6 pins), 4 dB*2, 600 Ω, balanced (electronically-balanced) type
Internal speaker: 2-way x 2 (woofer x 2, tweeter x 1)
Contact Inputs2 inputs, removable terminal block (6 pins), no-voltage make contact
Control Outputs2 inputs, removable terminal block (6 pins), no-voltage make contact
Network I/F10BASE-T / 100BASE-TX, RJ-45
Array MicrophoneUndirectional electret condenser type
Frequency Characteristics20 Hz - 20 kHz (AUX IN - AUX OUT)
Operation SectionPower Switch, Bluetooth pairing, Mute, Volumn Up/Down
IndicatorsPower (Blue/Green/Orange/Red), USB connection (Green), Bluetooth (Blue), Multifunction (Green/Red)
Operating Temperature0 - 40°C
Operating Humidity90% RH or less (no condensation)
Finish
BodyAluminum, Black
Punched NetSteel, Black (RAL 9005 equivalent)
Side CovervABS resin, Black
Dimension800 (W) x 83.2 (H) x 85.8 (D) mm
Weight4.6 kg



Firmware version (1.6.0)
Firmware readme.txt (please click to view)
Firmware update procedure (please click to view)
Control Module using Crestron/AMX/Extron, download the software here.
