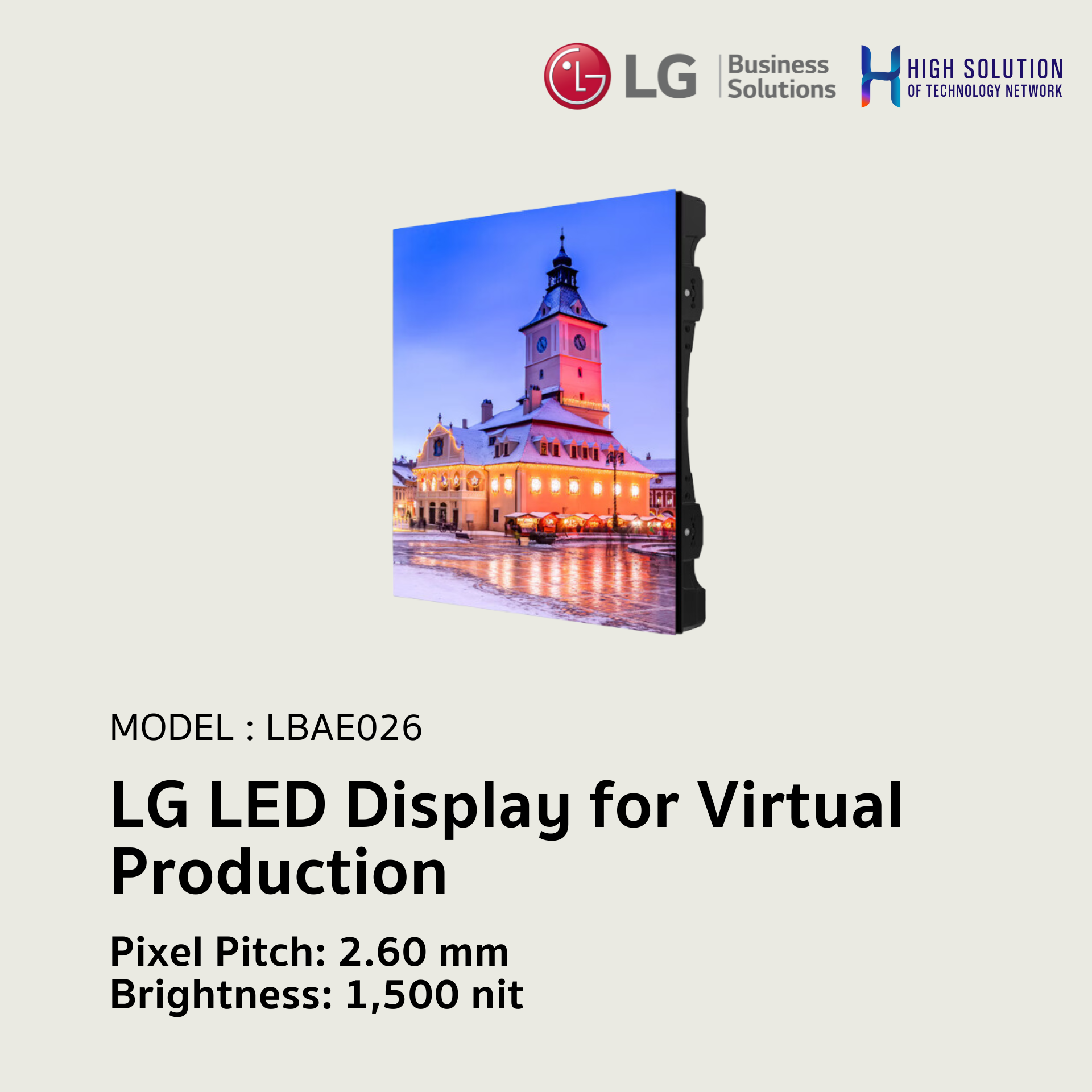

LBAE026 LED Display for Virtual Production Front or Rear Serviceability P2.60

Physical Parameters

Pixel Configuration :  3 in 1 SMD
Pixel Pitch(mm)  :  2.6
Module Resolution (WxH)  :  96x96
Module Dimensions(WxH,mm)  :  250x250
Weight per Module (kg)  :  0.59
No. of Modules per Cabinet (WxH)  :  2 x 2
Cabinet Resolution (WxH)  :  192x192
Cabinet Dimensions (W x H x D, mm)  :  500x500x75.5
Cabinet Surface Area (㎡)  :  0.25
Weight per Cabinet (kg/unit)  :  6
Weight per Square Meter (kg/m²)  :  24
Physical Pixel Density (pixels/m²)  :  147,456
Flatness of Cabinet (mm)  :  ±0.15
Cabinet Material  :  Die casting Magnesium alloy
Service Access  :  Front or Rear (select one only)

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)  :  1,500 (Peak 2,000)
Color Temperature (K)  :  3500-9000K(default:6500K)
Visual Viewing Angle (Horizontal)  :  160
Visual Viewing Angle (Vertical)  :  160
Brightness Uniformity  :  97%
Color Uniformity  :  ±0.003Cx,Cy
Contrast Ratio  :  5,000
Processing Depth (bit)  :  16

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)  :  180
Power Consumption (W/Cabinet , Avg.)  :  60
Power Consumption (W/m², Max.)  :  720
Power Supply (V)  :  100 to 240
Frame Rate (Hz)  :  50 / 60
Refresh Rate (Hz)  :  7,680

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)  :  100,000
Operating Temperature()  :  -10℃ to +45℃
Operating Humidity  :  0~80%RH
IP Rating Front / RearIP30

Series

Series  :  LBAE
