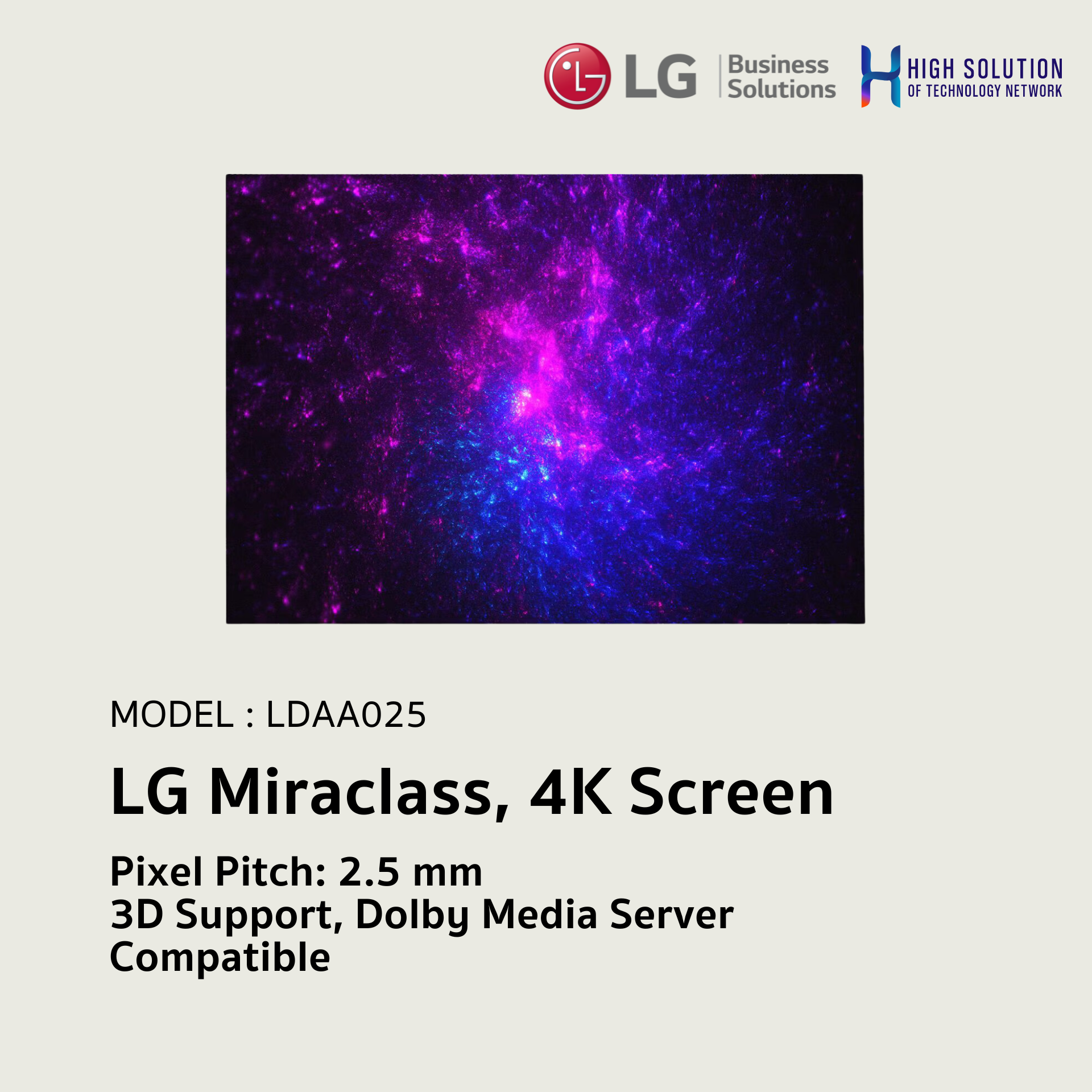

LDAA025 LG Miraclass, 4K Screen 3D Support, Dolby Media Server Compatible

Physical Parameters

Pixel Pitch(mm)  :  2.5mm
Pixel Configuration  :   SMD
LED Lifetime (Half Brightness)  :  100,000 Hours
No. of Modules per Cabinet (W × H)  :  6 (2 x 3)
Cabinet Resolution (W × H)  :  256 x 180
Cabinet Material  :  Aluminum
Cabinet Dimensions (W x H x D, mm)  :  Main : 640 x 450 x 59 (163 w/back cover)  Secondary : 640 x 450 x 59 (101 w/handle)
Secondary : 640 x 450 x 59 (101 w/handle)  :  Weight per Cabinet (kg/unit)
Weight per Cabinet (kg/unit)  :  Main Cabinet : 13.8 Secondary : 7.5
Power Consumption (W/Cabinet, 48 nit)  :  130 (Main) / 40 (Secondary)
Power Consumption (W/Cabinet, 300nit)  :  200 (Main) / 80 (Secondary)
Service Access  :  Rear only

4K Screen Specifications

Screen Resolution (WxH, Native)  :  4,096 x 2,160
Physical Pixel Density (pixels/㎡)  :  160,000
No. of Cabinets per Screen (Resolution, WxH)  :  192 (16 x 12)
Screen Dimensions (W x H, mm)  :  10,240 x 5,400 (55sqm)
Screen Weight (kg)  :  1446.3
Power Supply (V)  :  AC100-240 V ~, 50/60 Hz
Power Type  :  Built-in Power
Power Consumption (W/Screen, 48 nit)  :  7,770
Power Consumption (W/Screen, 300 nit)  :  15,480
Operating Temperature()  :  0 to 40
Operating Humidity  :  10% to 80%

OPTICAL SPECIFICATIONS

Video Frame Rate (Hz)  :  24, 25, 30, 48, 50, 60, 144@3D
Refresh Rate (@24Hz)  :  3,072@24Hz, 3,840@60Hz
Brightness (After Calibration, nit)  :  48(DCI) / 55 / 65 / 75 / 100 / 130 / 260 / 300
Contrast Ratio  :  ≥4,000:1
Color Space (Gamut)  :  DCI P3 Theater
Visual Viewing Angle (H × V)  :  160 × 160
 Processing Depth (bit)  :  15bit@24/48/50Hz
Bit Rate (Color Processing / Color)  :  24 (72 / total)

General

Certification  :  DCI, CB, CE-LVD/EMC, FCC, ETL/UL, RoHS, REACH
Cinema server compatibility  :  Dolby IMS3-L
Interface  :  RJ45, HDMI x 2, RS232C

Series

Series  :  LDAA
