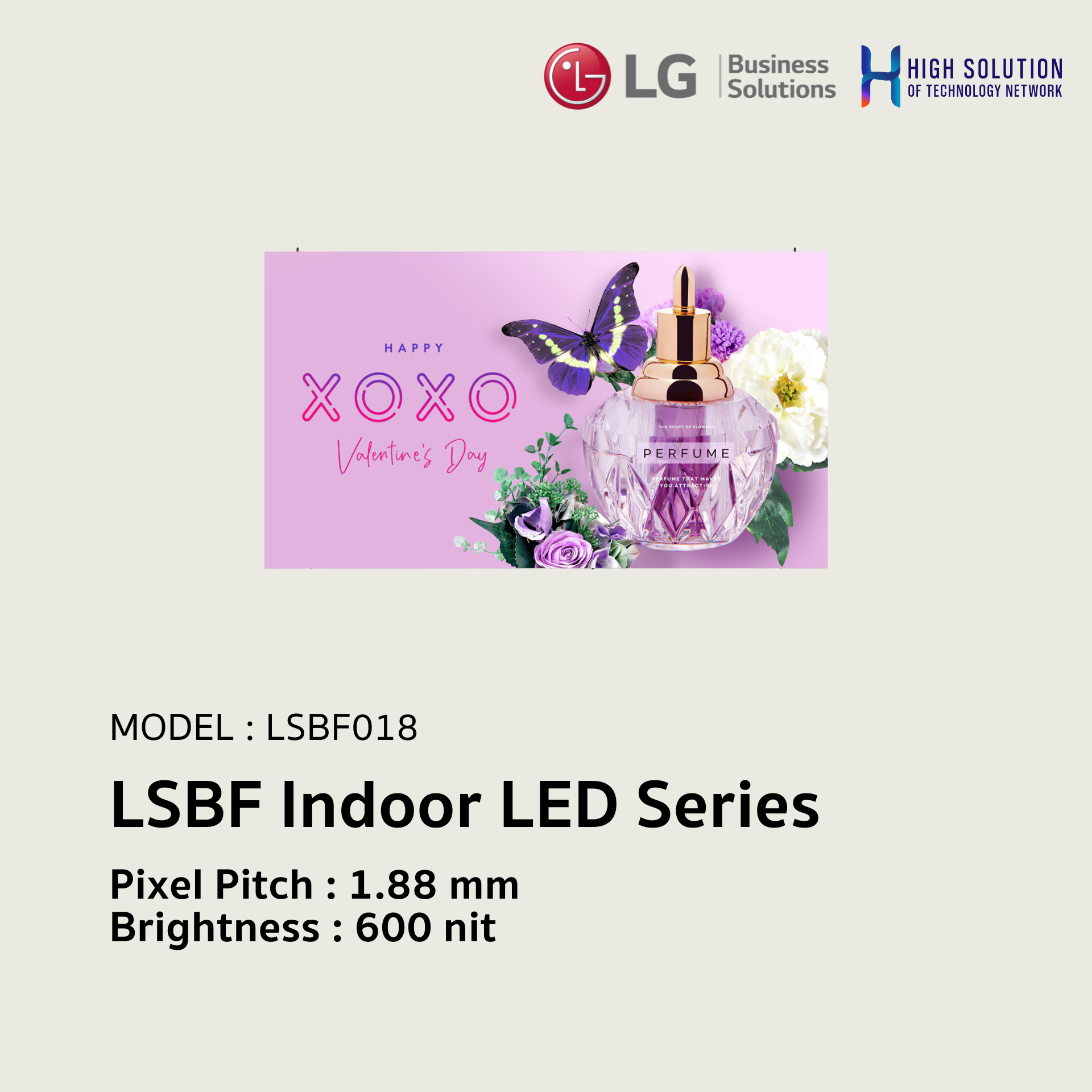

LSBF018 LG LSBF Indoor LED Series Compatibility with LG Software Solutions P1.88

Attribute:

SKU : LSBF018-P188

Brand : LG

Share

Physical Parameters

Pixel Configuration  :  Single SMD
Pixel Pitch(mm)  :  1.88
Module Resolution (WxH)  :  160x180
Module Dimensions(WxH,mm)  :  300x337.5x13
Weight per Module (kg)  :  0.95
No. of Modules per Cabinet (WxH)  :  4 x 2
Cabinet Resolution (WxH)  :  640x360
Cabinet Dimensions (W x H x D, mm)  :  1200x675x72
Cabinet Surface Area (㎡)  :  0.810
Weight per Cabinet (kg/unit)  :  23.0
Weight per Square Meter (kg/m²)  :  28.0
Physical Pixel Density (pixels/m²)  :  284,089
Flatness of Cabinet (mm)  :  ±0.3
Cabinet Material  :  Die-casting Aluminum
Service Access  :  Front

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)  :  600
Color Temperature (K)  :  3,000 ~ 10,000
Visual Viewing Angle (Horizontal)  :  160
Visual Viewing Angle (Vertical)  :  150
Brightness Uniformity  :  97%
Color Uniformity  :  ±0.003Cx,Cy
Contrast Ratio  :  5,000:1
Processing Depth (bit)  :  14

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)  :  100,000
Operating Temperature()  :  -20 to +40
Operating Humidity  :  10~80%RH
IP Rating Front  :  IP50
IP Rating Rear  :  IP50

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)  :  413
Power Consumption (W/Cabinet, Avg.)  :  166
Power Consumption (W/m², Max.)  :  510
Heat Dissipation (BTU/h/Cabinet, Max.)  :  1,410
Heat Dissipation (BTU/h/Cabinet, Avg.)  :  566
Heat Dissipation (BTU/h/m², Max.)  :  1,740
Power Supply (V)  :  100 to 240
Frame Rate (Hz)  :  50 / 60
Refresh Rate (Hz)  :  3,840

Standard

Certification  :  CE, FCC, cTUVus, CB, KC, CCC

Environment

Environment  :  RoHS, REACH

Controller

Controller  :  CVBA

Series

Series  :  LSBF
