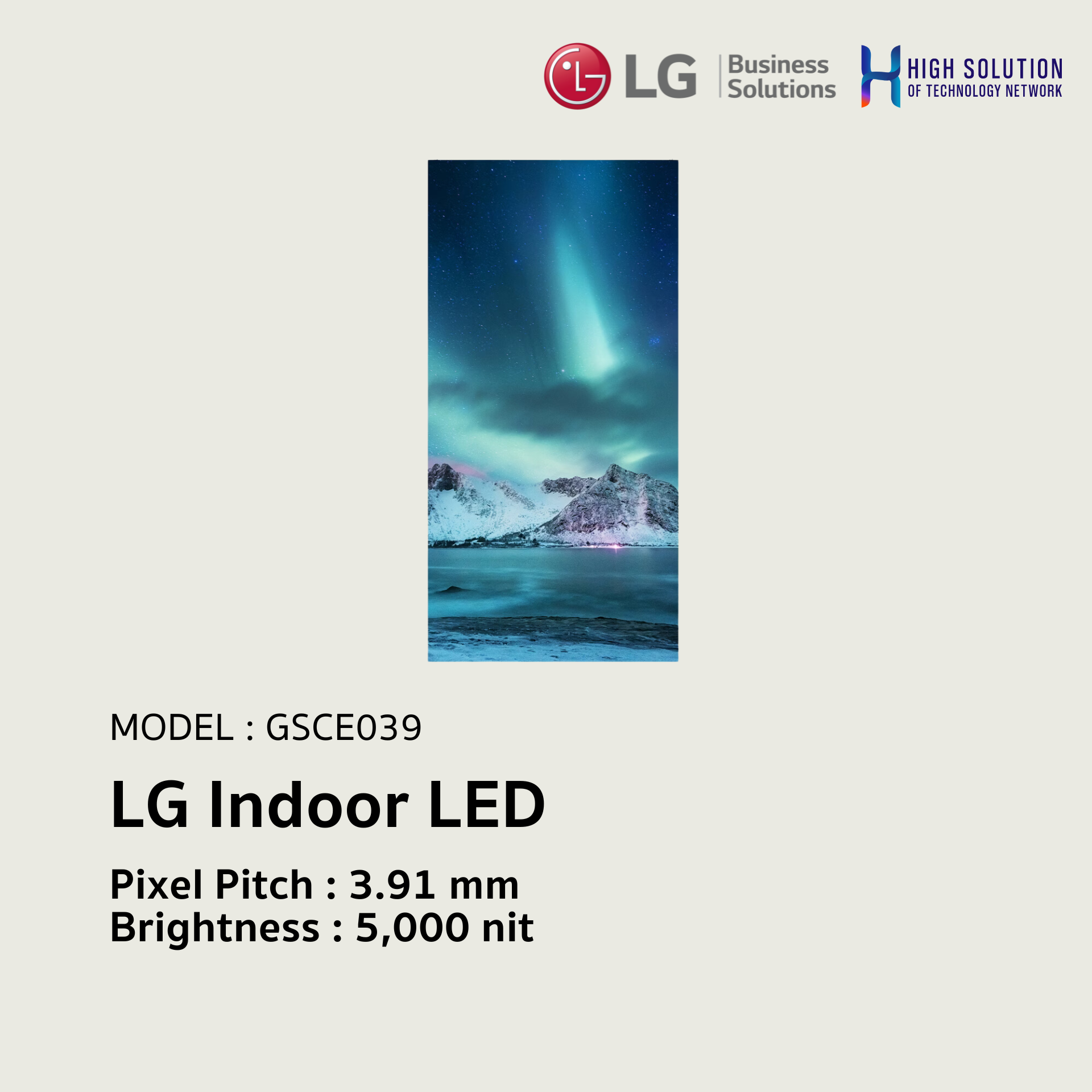

GSCE039 LG Indoor LED Ceiling LED Display for Virtual Productrion

Physical Parameters

Pitch Name  :  P3.91
Pixel Configuration  :  Single SMD
Pixel Pitch(mm)  :  3.91
Module Resolution (WxH)  :  64x128
Module Dimensions(WxH,mm)  :  250x500
Weight per Module (kg)  :  1.40
No. of Modules per Cabinet (WxH)  :  2x2
Cabinet Resolution (WxH)  :  128x256
Cabinet Dimensions (W x H x D, mm)  :  500x1000x66.05
Cabinet Surface Area (㎡)  :  0.500
Weight per Cabinet (kg/unit)  :  12.4
Weight per Square Meter (kg/m²)  :  24.9
Physical Pixel Density (pixels/m²)  :  65,536
Flatness of Cabinet (mm)  :  ±0.3
Cabinet Material  :  Die-casting Magnesium
Service Access  :  Front or Rear (select one only)

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)  :  5,000
Color Temperature (K)  :  2,000-11,000
Visual Viewing Angle (Horizontal)  :  160
Visual Viewing Angle (Vertical)  :  155
Brightness Uniformity  :  0.97
Color Uniformity  :  ±0.003Cx,Cy
Contrast Ratio  :  6,000:1
Processing Depth (bit)  :  16 (PQ, HLG)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)  :  300
Power Consumption (W/Cabinet, Avg.)  :  100
Power Consumption (W/m², Max.)  :  600
Heat Dissipation (BTU/h/Cabinet, Max.)  :  1,024
Heat Dissipation (BTU/h/Cabinet, Avg.)  :  341
Heat Dissipation (BTU/h/m², Max.)  :  2,047
Power Supply (V)  :  100 to 240
Frame Rate (Hz)  :  50 / 60
Refresh Rate (Hz)  :  3,840

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)  :  100,000
Operating Temperature()  :  -30 to +45
Operating Humidity  :  10~99%RH
IP Rating Front  :  IP30
IP Rating Rear  :  IP30

Standard

Certification  :  CE, FCC, ETL

Environment

Environment  :  RoHS

Controller

Controller  :  (MVR HEIOS)

Series

Series  :  GSCE
