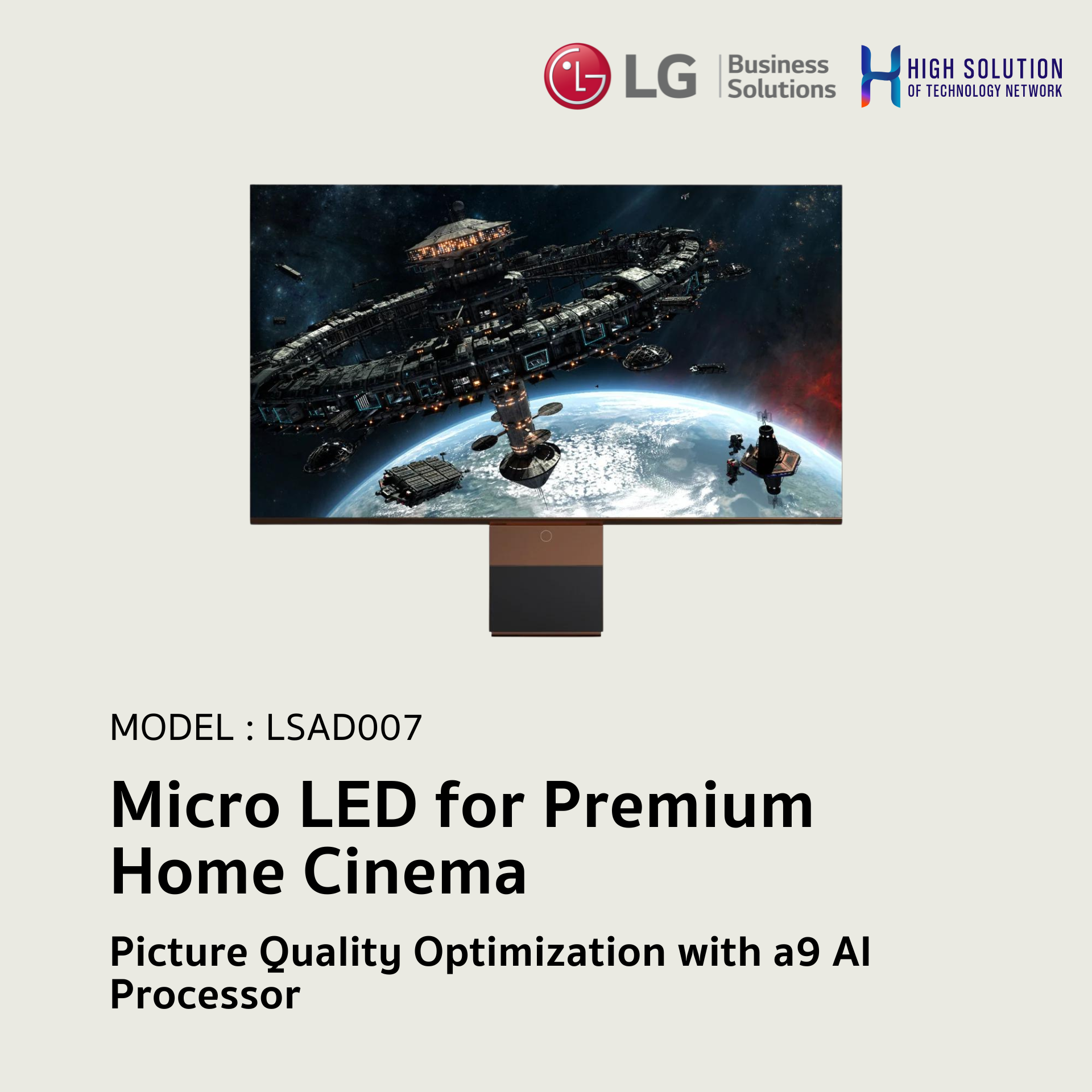

LSAD007 LG Magnit Micro LED for Premium Home Cinema 4K

Attribute:

SKU : LSAD007

Brand : LG

Share

Physical Parameters

Pixel Pitch (mm)  :  0.78
Screen Resolution (W × H)  :  3,840 × 2,160
Screen Dimension (W × H × D, mm, including bezel)  :  3,010 × 1,732 × 57.8
Screen Dimension (W × H × D, mm)  :  3,000 × 1,687.5 × 57.8
Screen Surface Area (m²)  :  5.063
Weight of the screen (kg)  :  200
Physical Pixel Density (pixels/m²)  :  4,915,200
Service Access  :  Front

OPTICAL SPECIFICATIONS

Brightness (After Calibration, nit)  :  Peak 2,000 / Max 250
Color Temperature  :  4,800 ~ 9,300 / Default 7,300
Visual Viewing Angle (H × V)  :  150 × 148
Brightness Uniformity  :  95%
Color Uniformity  :  ±0.002Cx,Cy
Contrast Ratio  :  150,000:1 @10lux
Processing Depth (bit)  :  20 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/screen, Max.)  :  2,000
Power Consumption (W/screen, Avg.)  :  1,500
Power Consumption (W/m², Max.)  :  395
Heat Dissipation (BTU/h/Cabinet, Max.)  :  6,824
Heat Dissipation (BTU/h/Cabinet, Avg.)  :  5,118
Heat Dissipation (BTU/h/m², Max.)  :  1,348
Power Supply (V)  :  100 to 240
Frame Rate (Hz)  :  100 / 120
Refresh Rate (Hz)  :  3,840

Controller

Controller  :  Media Box (MSAD-007)

Connectivity

Connectivity  :  HDMI In (4), USB In (2), LAN In, RS-232C In, Digital Audio Out, eARC, WiSA Ready, Built-in Wi-Fi, Bluetooth

OPERATION SPECIFICATIONS

LED Lifetime to Half Brightness  :  100,000
Operating Temperature (°C)  :  0 to +40
Operating Humidity  :  10 ~ 80%RH
IP Rating Front / Rear  :  IP50 / IP20

Certification

Certification  :  CE,FCC,ETL,CB, EyeComfort

Environment

Environment  :  RoHS, REACH

Accessory

Optional  :  Wall-mount, Media Furniture

Series

Series  :  LSAD
