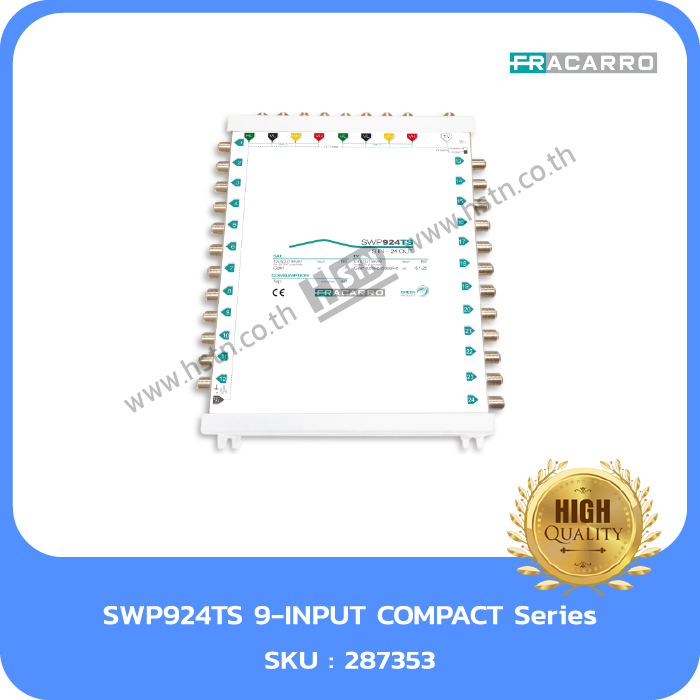

287353 SWP924TS, 9-INPUT COMPACT Series

Attribute:

SKU : 287353

Brand : Fracarro

Share

    9-input COMPACT MULTISWITCHESes with dip switch to select active or passive TV gain.

Main Specifications
  • Satellite band up to 2300MHz
  • High SAT output level to run long cable drop (60m with 6.7mm coax.)
  • Each port has a LED which shows the correct reception of the STB DiSEqC command
  • Return channel included when TV gain is passive (5-65MHz)
  • When TV gain is passive, the product is entirely fed by tap ports; only when TV active is enabledd, it has to be fed by DC-PLUG
  • Stand alone power supply PSU1315TS (13V, 1,5A) included with standard Male Jack connector (2,1x5,5x12; internal positive, external negative) to optimize the installation space and reduce the maintenance time
  • Space reduced thanks to the matrix system with both sided connectors
  • Standard colour coding for an easy installation
